[#PETALSBCREST-62] Unable to create the right XML payload from an incoming HTTP POST - Petals Link JIRA

Details

Type: Bug
Status: Resolved
Priority: Blocker
Resolution: Fixed
Affects Version/s: 1.1.1-BC
Fix Version/s: 1.2.0-BC
Component/s: Consumer mode
Security Level: Public

Description:
Hide
I want to export my service interface as following:

HTTP method: POST

HTTP path: http://<server:port>/api/demarches-administratives/cantine

HTTP body JSON:

{ "usager-demandeur": "jdoe", "numero-fiscal": "123456789" }

As it's a POST, only the convertion JSON --> XML is operated, and I'm not able to manage correctly namespaces in XML payload. The expected XML payload is:

<new xmlns="my-namespace"> <usager-demandeur xmlns="">jdoe</usager-demandeur> <numero-fiscal xmlns="">123456789</numero-fiscal> </new>

I think that we should run a XSL transformation after the JSON-->XML conversion to adjust XML payload.

Moreover, we should be able to include in the XML payload elements of the URL path according to the URI template. These parameters could be transmitted to the XSL transformation as XSL parameters.
Show
I want to export my service interface as following:

HTTP method: POST

HTTP path: http://<server:port>/api/demarches-administratives/cantine

HTTP body JSON:

{ "usager-demandeur": "jdoe", "numero-fiscal": "123456789" }

As it's a POST, only the convertion JSON --> XML is operated, and I'm not able to manage correctly namespaces in XML payload. The expected XML payload is:

<new xmlns="my-namespace"> <usager-demandeur xmlns="">jdoe</usager-demandeur> <numero-fiscal xmlns="">123456789</numero-fiscal> </new>

I think that we should run a XSL transformation after the JSON-->XML conversion to adjust XML payload. Moreover, we should be able to include in the XML payload elements of the URL path according to the URI template. These parameters could be transmitted to the XSL transformation as XSL parameters.

Environment:

-

Activity

Ascending order - Click to sort in descending order

Christophe DENEUX made changes - Wed, 28 Mar 2018 - 11:27:55 +0200

Field	Original Value	New Value
Status	New [ 10000 ]	Open [ 10002 ]
Priority		Blocker [ 1 ]

Christophe DENEUX made changes - Wed, 28 Mar 2018 - 11:27:58 +0200

Status

Open [ 10002 ]

In Progress [ 10003 ]

Hide

Permalink

Christophe DENEUX added a comment - Wed, 28 Mar 2018 - 17:39:34 +0200 - edited

Fixed in trunk.

A new XSL transformation has been added after conversion JSON-->XML of the HTTP body to adjust the XML payload to the one expected by the service provider.

<rest:operation name="inscription-cantine:new">
    <!-- REST request part -->
    <rest:http-method>POST</rest:http-method>
    <rest:path-template>/demarches-administratives/cantine</rest:path-template>
    <rest:http-body-from-json-virtual-root>new</rest:http-body-from-json-virtual-root>
    <rest:incoming-payload>
        <rest:transformation>
            <rest:xsl>new-request.xsl</rest:xsl>
        </rest:transformation>
    </rest:incoming-payload>

    <!-- REST request part -->
    <rest:http-body-to-json-virtual-root>newResponse</rest:http-body-to-json-virtual-root>
</rest:operation>

Show

Christophe DENEUX added a comment - Wed, 28 Mar 2018 - 17:39:34 +0200 - edited Fixed in trunk. A new XSL transformation has been added after conversion JSON-->XML of the HTTP body to adjust the XML payload to the one expected by the service provider.

<rest:operation name="inscription-cantine:new">
    <!-- REST request part -->
    <rest:http-method>POST</rest:http-method>
    <rest:path-template>/demarches-administratives/cantine</rest:path-template>
    <rest:http-body-from-json-virtual-root>new</rest:http-body-from-json-virtual-root>
    <rest:incoming-payload>
        <rest:transformation>
            <rest:xsl>new-request.xsl</rest:xsl>
        </rest:transformation>
    </rest:incoming-payload>

    <!-- REST request part -->
    <rest:http-body-to-json-virtual-root>newResponse</rest:http-body-to-json-virtual-root>
</rest:operation>

Christophe DENEUX made changes - Wed, 28 Mar 2018 - 17:39:34 +0200

Status	In Progress [ 10003 ]	Resolved [ 10004 ]
Fix Version/s		1.2.0-BC [ 10821 ]
Resolution		Fixed [ 1 ]

Christophe DENEUX made changes - Wed, 6 Jun 2018 - 09:39:04 +0200

Description

I want to export my service interface as following:
* HTTP method: {{POST}}
* HTTP path: http://<server:port>/api/demarches-administratives/cantine
* HTTP body JSON:
{code}
{
   "usager-demandeur": "jdoe",
   "numero-fiscal": "123456789"
}
{code}

As it's a POST, only the convertion JSON --> XML is operated, and I'm not able to manage correctly namespces in XML payload. The expected XML payload is:
{code}
<new xmlns="my-namespace">
   <usager-demandeur xmlns="">jdoe</usager-demandeur>
   <numero-fiscal xmlns="">123456789</numero-fiscal>
</new>
{code}

I think that we should run a XSL tranformation after the JSON-->XML convertion to adjust XML payload.

Moreover, we should be able to include in the XML payload elements of the URL path according to the URI template. These parameters could be transmitted to the XSL transformation as XSL parameters.

I want to export my service interface as following:
* HTTP method: {{POST}}
* HTTP path: http://<server:port>/api/demarches-administratives/cantine
* HTTP body JSON:
{code}
{
   "usager-demandeur": "jdoe",
   "numero-fiscal": "123456789"
}
{code}

As it's a POST, only the convertion JSON --> XML is operated, and I'm not able to manage correctly namespaces in XML payload. The expected XML payload is:
{code}
<new xmlns="my-namespace">
   <usager-demandeur xmlns="">jdoe</usager-demandeur>
   <numero-fiscal xmlns="">123456789</numero-fiscal>
</new>
{code}

I think that we should run a XSL transformation after the JSON-->XML conversion to adjust XML payload.

Moreover, we should be able to include in the XML payload elements of the URL path according to the URI template. These parameters could be transmitted to the XSL transformation as XSL parameters.

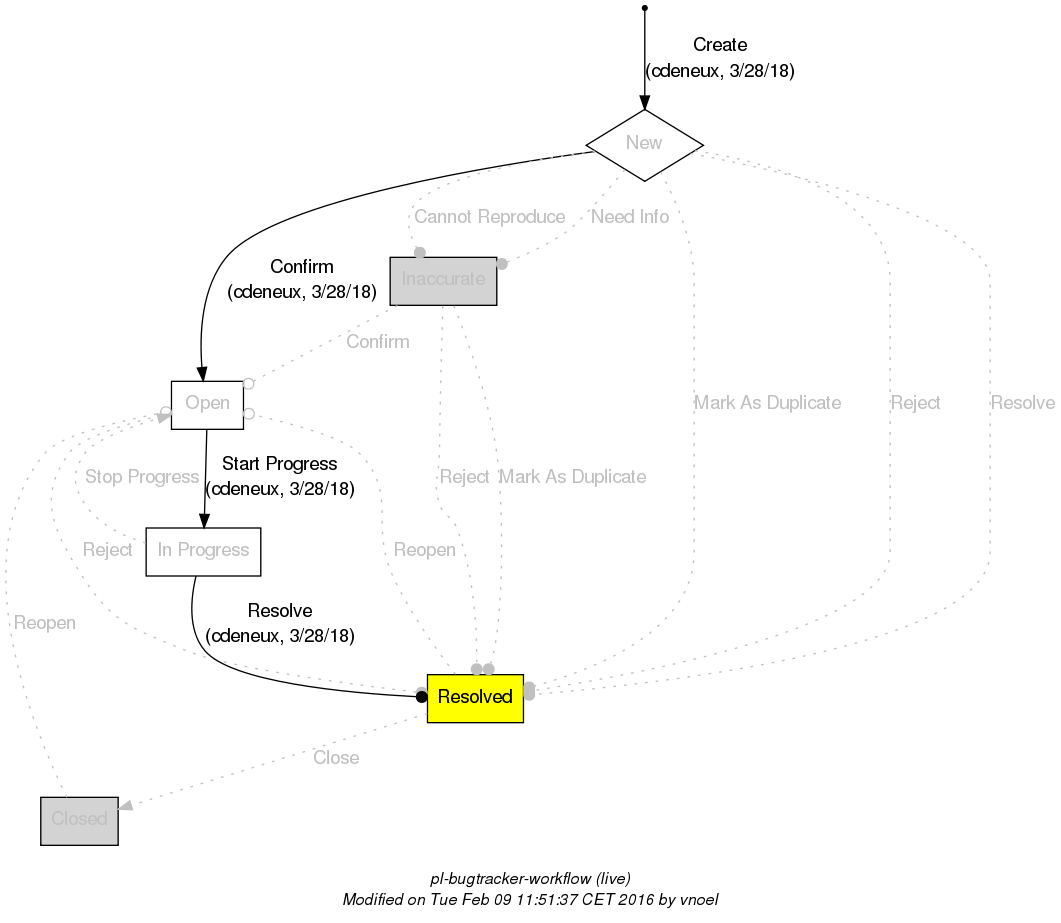

Transition

Status Change Time

Execution Times

Last Executer

Last Execution Date

New

Open

13s

Christophe DENEUX

Wed, 28 Mar 2018 - 11:27:55 +0200

Open

In Progress

Christophe DENEUX

Wed, 28 Mar 2018 - 11:27:58 +0200

In Progress

Resolved

6h 11m

Christophe DENEUX

Wed, 28 Mar 2018 - 17:39:34 +0200

People

Assignee:

Christophe DENEUX

Reporter:

Christophe DENEUX
Watchers:

0

Dates

Created:

Wed, 28 Mar 2018 - 11:27:42 +0200

Updated:

Wed, 6 Jun 2018 - 09:39:04 +0200

Resolved:

Wed, 28 Mar 2018 - 17:39:34 +0200
